The role of thermal design and its importance
Author
Admin
Date
2026-08-14 13:00
Views
52
Engineering Notebook #2

In RF Energy systems, heat is not a small side effect. It is one of the first constraints that decides how much power a system can deliver, how long it can operate, and whether it can survive outside the lab. When engineers talk about improving transmitter output, the discussion often starts with numbers such as 30 dBm, 36 dBm, or higher. But every increase in RF output also brings a thermal question: where does the unused electrical power go? If that question is answered only after the PCB is already designed, the project is already late. Thermal design starts before the PCB because heat follows the entire system architecture, not only the copper layout.
Higher Output Power Creates a Bigger Thermal Burden
Increasing RF output power can extend operating distance or improve received power under certain conditions. However, it also increases the burden on the RF power amplifier, DC power supply, enclosure, and cooling path. A transmitter that looks successful in a short demonstration may behave very differently during long-duration operation, especially when the PA temperature rises and efficiency begins to shift. This is why output power cannot be evaluated as an isolated performance number. A 36 dBm design is not simply a stronger version of a 30 dBm design. It may require a different PA, different package, different heat spreading structure, and even a different regulatory or deployment strategy.
Why PCB-Level Fixes Are Often Too Late
PCB layout matters, but it cannot rescue a weak thermal architecture by itself. Wider traces, thermal vias, copper pours, and heat sinks are useful tools, but they work best when the heat path has already been planned. If the package does not transfer heat efficiently, or if the enclosure traps hot air, the PCB becomes the place where earlier decisions reveal their limits. Late-stage fixes also add mechanical complexity and cost. A fan, a thicker board, or a larger heat sink may solve one test condition while creating new problems in noise, size, reliability, or installation. For commercial RF Energy systems, that kind of patchwork is not a stable engineering strategy.
Thermal Design Is a System-Level Decision
A proper thermal strategy begins before schematic and PCB layout. It starts with target output power, PA efficiency, duty cycle, installation environment, enclosure material, antenna configuration, and expected operating time. In RF Energy systems, the transmitter is not just an RF block. It is a power conversion system, a heat-generating system, and a deployment asset at the same time. That is why semiconductor packaging becomes important. If the PA package can move heat more efficiently from the active device to the external structure, the system has more freedom in layout, enclosure design, and long-term operation. The goal is not only to make the circuit work, but to make it work repeatedly under realistic conditions.
WARP Solution’s RF Energy Systems

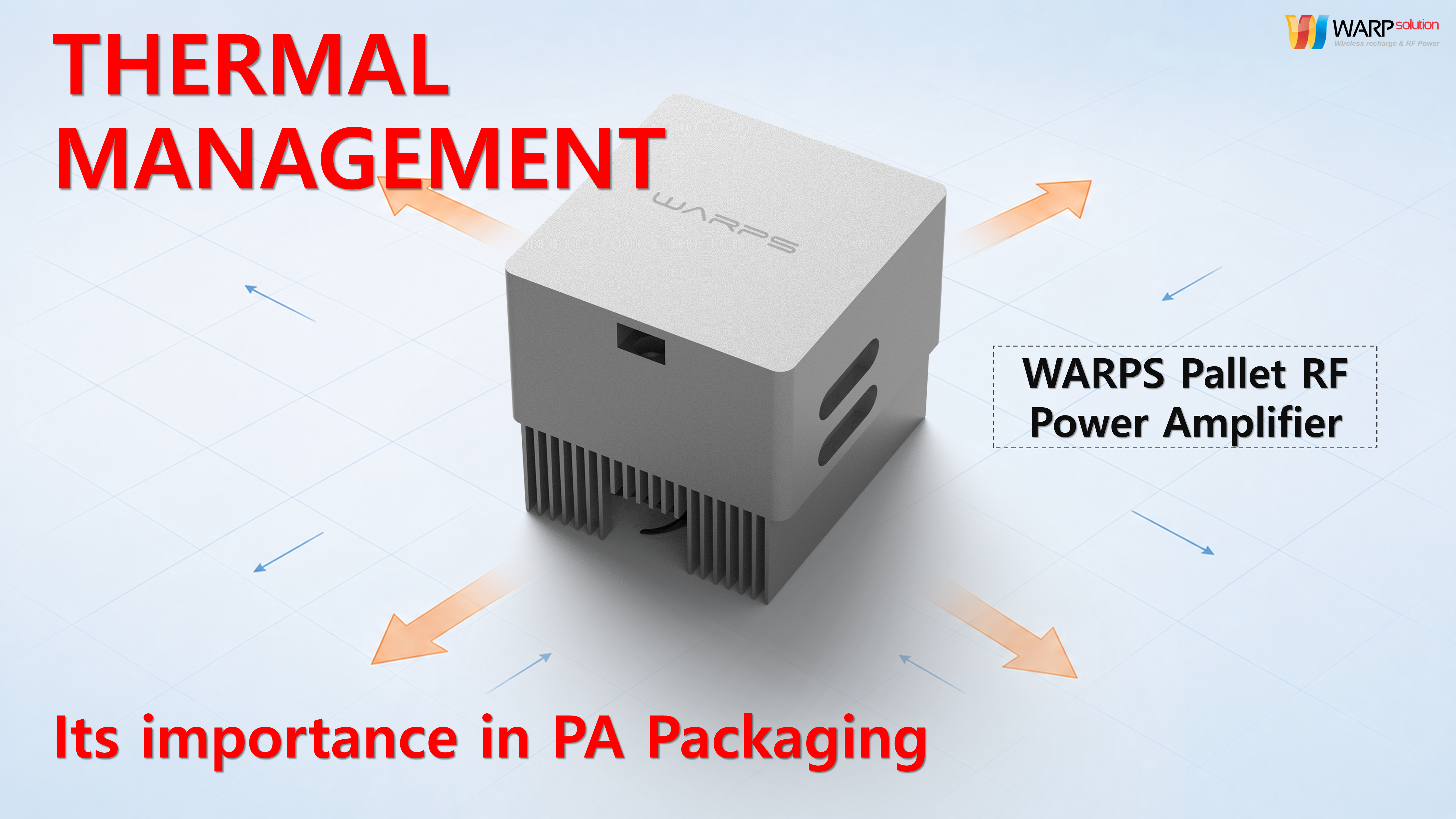

For WARP Solution, thermal design is not treated as a late-stage PCB issue. It is connected to the transmitter architecture, PA package structure, and the physical path that moves heat away from the active device. This approach is reflected in WARP Solution’s patented PA packaging technology, including US10504748B2, which describes a power amplifier module package using a unified pattern, ceramic sidewall, and metal layer structure designed with thermal conductivity and thermal expansion characteristics in mind. The significance is not simply that the package becomes smaller or easier to manufacture. It shows that thermal behavior must be considered at the package level before the PCB is even finalized. In RF Energy systems, that matters because transmitter scalability depends on stable output, controlled heat, and a structure that can move from prototype operation to real deployment.
The Engineering Takeaway
Thermal design starts before the PCB because heat is created by architectural choices long before it reaches the board. Once output power, PA selection, package structure, enclosure size, and operating conditions are fixed, the PCB layout can only optimize within those limits. For engineers developing RF Energy systems, this changes the order of decision-making. The question is not “How do we cool this board?” The better question is “What system structure allows this power level to operate reliably?” That shift matters because commercial deployment is not judged by a single peak output measurement. It is judged by stable performance, controlled heat, efficient power use, and reliability in the real world.
